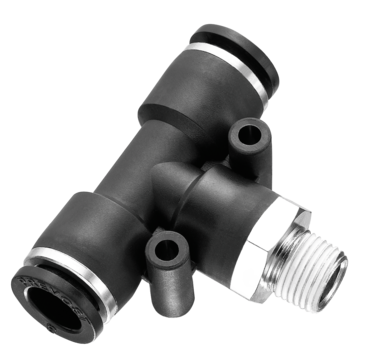

T macho cónico en el centro orientable - RPT CR
Peso neto (kg)
0,011
Ø exterior (mm)
4.00
Rosca
R1/8
Material
Polímero
Presión max. de utilización
10.00 bar
Temperatura
0.00°C a 60.00°C
Para tubos Ø exterior
4 mm
Descripción
Referencia
Peso neto (kg)
Ø exterior (mm)
Rosca
Material
Presión max. de utilización
Temperatura
Para tubos Ø exterior
RPT CR0400
RPT CR0401
RPT CR0500
RPT CR0501
RPT CR0502
RPT CR0503
RPT CR0600
RPT CR0601
RPT CR0602
RPT CR0603
RPT CR0800
RPT CR0801
RPT CR0802
RPT CR0803
RPT CR1000
RPT CR1001
RPT CR1002
RPT CR1003
RPT CR1201
RPT CR1202
RPT CR1203
RPT CR1402
RPT CR1403
RPT CR1602
RPT CR1603
Dimensiones
Referencia
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPT CR0400
35
25
10
17.5
10
RPT CR0401
35
26.5
14
17.5
10
RPT CR0500
41
27.5
12
20
12.8
RPT CR0501
41
29
14
20
12.8
RPT CR0502
41
31.5
17
20.5
12.8
RPT CR0503
41
34
21
21
12.8
RPT CR0600
41
27.5
12
20
12.8
RPT CR0601
41
29
14
20
12.8
RPT CR0602
41
31.5
17
20.5
12.8
RPT CR0603
41
34
21
21
12.8
RPT CR0800
45
29.5
14
22
13.8
RPT CR0801
45
31
14
22
13.8
RPT CR0802
45
33.5
17
22.5
13.8
RPT CR0803
45
36
21
23
13.8
RPT CR1000
52.6
33.2
17
25.7
16.8
RPT CR1001
52.6
34.7
17
25.7
16.8
RPT CR1002
52.6
36.7
17
25.7
16.8
RPT CR1003
52.6
39.2
21
26.2
16.8
RPT CR1201
55.6
35.5
19
26.5
19.8
RPT CR1202
55.6
38
19
27
19.8
RPT CR1203
55.6
40
21
27
19.8
RPT CR1402
62
41.2
22
30.2
22.7
RPT CR1403
62
43.2
22
30.2
22.7
RPT CR1602
64.59
43
24
32
23.8
RPT CR1603
64.59
45
24
32
23.8
Descripción
| Referencia | Peso neto (kg) | Ø exterior (mm) | Rosca | Material | Presión max. de utilización | Temperatura | Para tubos Ø exterior | 3D |
|---|---|---|---|---|---|---|---|---|
| RPT CR0400 | 0,011 | 4.00 | R1/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 4 mm | |
| RPT CR0401 | 0,015 | 4.00 | R1/4 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 4 mm | |
| RPT CR0500 | 0,015 | 5.00 | R1/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 5 mm | |
| RPT CR0501 | 0,019 | 5.00 | R1/4 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 5 mm | |
| RPT CR0502 | 0,024 | 5.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 5 mm | |
| RPT CR0503 | 0,034 | 5.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 5 mm | |
| RPT CR0600 | 0,015 | 6.00 | R1/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 6 mm | |
| RPT CR0601 | 0,018 | 6.00 | R1/4 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 6 mm | |
| RPT CR0602 | 0,024 | 6.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 6 mm | |
| RPT CR0603 | 0,034 | 6.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 6 mm | |
| RPT CR0800 | 0,019 | 8.00 | R1/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 8 mm | |
| RPT CR0801 | 0,02 | 8.00 | R1/4 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 8 mm | |
| RPT CR0802 | 0,025 | 8.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 8 mm | |
| RPT CR0803 | 0,037 | 8.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 8 mm | |
| RPT CR1000 | 0,029 | 10.00 | R1/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 10 mm | |
| RPT CR1001 | 0,031 | 10.00 | R1/4 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 10 mm | |
| RPT CR1002 | 0,034 | 10.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 10 mm | |
| RPT CR1003 | 0,044 | 10.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 10 mm | |
| RPT CR1201 | 0,041 | 12.00 | R1/4 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 12 mm | |
| RPT CR1202 | 0,045 | 12.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 12 mm | |
| RPT CR1203 | 0,052 | 12.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 12 mm | |
| RPT CR1402 | 0,0579 | 14.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 14 mm | |
| RPT CR1403 | 0,068 | 14.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 14 mm | |
| RPT CR1602 | 0,064 | 16.00 | R3/8 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 16 mm | |
| RPT CR1603 | 0,07 | 16.00 | R1/2 | Polímero | 10.00 bar | 0.00°C a 60.00°C | 16 mm |
Dimensiones
| Referencia | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPT CR0400 | 35 | 25 | 10 | 17.5 | 10 |
| RPT CR0401 | 35 | 26.5 | 14 | 17.5 | 10 |
| RPT CR0500 | 41 | 27.5 | 12 | 20 | 12.8 |
| RPT CR0501 | 41 | 29 | 14 | 20 | 12.8 |
| RPT CR0502 | 41 | 31.5 | 17 | 20.5 | 12.8 |
| RPT CR0503 | 41 | 34 | 21 | 21 | 12.8 |
| RPT CR0600 | 41 | 27.5 | 12 | 20 | 12.8 |
| RPT CR0601 | 41 | 29 | 14 | 20 | 12.8 |
| RPT CR0602 | 41 | 31.5 | 17 | 20.5 | 12.8 |
| RPT CR0603 | 41 | 34 | 21 | 21 | 12.8 |
| RPT CR0800 | 45 | 29.5 | 14 | 22 | 13.8 |
| RPT CR0801 | 45 | 31 | 14 | 22 | 13.8 |
| RPT CR0802 | 45 | 33.5 | 17 | 22.5 | 13.8 |
| RPT CR0803 | 45 | 36 | 21 | 23 | 13.8 |
| RPT CR1000 | 52.6 | 33.2 | 17 | 25.7 | 16.8 |
| RPT CR1001 | 52.6 | 34.7 | 17 | 25.7 | 16.8 |
| RPT CR1002 | 52.6 | 36.7 | 17 | 25.7 | 16.8 |
| RPT CR1003 | 52.6 | 39.2 | 21 | 26.2 | 16.8 |
| RPT CR1201 | 55.6 | 35.5 | 19 | 26.5 | 19.8 |
| RPT CR1202 | 55.6 | 38 | 19 | 27 | 19.8 |
| RPT CR1203 | 55.6 | 40 | 21 | 27 | 19.8 |
| RPT CR1402 | 62 | 41.2 | 22 | 30.2 | 22.7 |
| RPT CR1403 | 62 | 43.2 | 22 | 30.2 | 22.7 |
| RPT CR1602 | 64.59 | 43 | 24 | 32 | 23.8 |
| RPT CR1603 | 64.59 | 45 | 24 | 32 | 23.8 |
